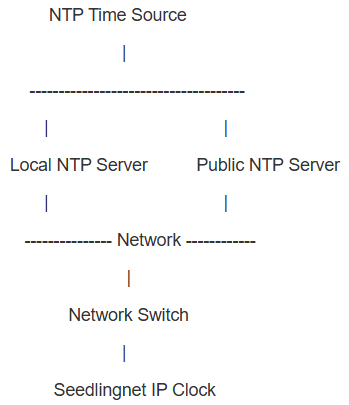

Seedlingnet IP Clock is a network-based synchronized clock that uses the Network Time Protocol (NTP) to obtain accurate time information from an NTP time source. Unlike traditional master clock systems that require dedicated wiring between master and slave clocks, IP clock works as a network device connected through Ethernet network, PoE network switch or WiFi network. The IP Clock automatically synchronizes time through the network. The ntp clock can be connected to local NTP server or public NTP server to gain the NTP Time Source. The diagram is as below.
When connecting Seedlingnet network clock to local NTP server or public NTP service, it has different features and advantages.

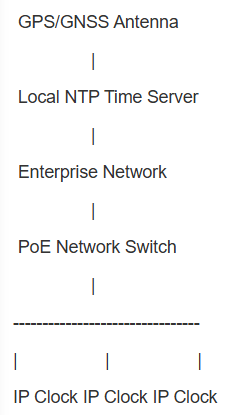

Connecting to Local NTP Server Synchronization
A Local NTP Server is an internal time server deployed inside an organization's network. The local NTP server usually receives accurate time from GPS, GNSS, BeiDou, Atomic clock reference, External timing sources. Then it distributes synchronized time to all network devices.
Advantages:
• High Reliability
A local NTP server provides an independent and stable time source. Even without Internet access, the system continues operating.This is critical for hospitals, government buildings, airports, transportation systems or Industrial facilities.
• Complete Network Control
The organization manage time source, network security, synchronization policy, device access directly. This provides better control compared with public NTP services.
• Accurate large-scale Time Synchronization
For large installations, the local NTP server can synchronize hundreds of Seedlingnet NTP Clock, for example, School IP Clock Synchronization, Hospital IP Clock Synchronization, Enterprise Network Clock Systems.

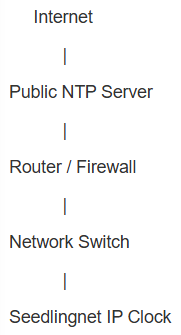

Connecting to Public NTP Server Synchronization
A Public NTP Server is an Internet-based time source that provides accurate UTC time through the Network Time Protocol. When using a public NTP server, Seedlingnet IP Clock connects directly through the Internet network.
Advantages:
• Easy Installation
The biggest advantage of a public NTP server solution is simplicity. Organizations does not need additional hardware such as GPS antenna, NTP time server, Master clock controller. Only a network connection is required.This makes it suitable for small offices, retail stores, meeting rooms, small commercial buildings.
• Lower System Cost
A public NTP server reduces initial investment because the organization can use existing Internet infrastructure. It just need Seedlingnet PoE IP Clock, PoE network switch, Internet connection. This provides an affordable network clock system.
• Flexible Deployment
Because each IP clock is an independent network device, installation is simple. No special clock wiring is required.
Limitation:
• Internet Dependency
If the Internet connection fails, the IP clock cannot obtain updated time information.
• Less Control Over Time Source
Organizations have limited control over NTP server availability, Network routing, External service changes.
• Security Requirements
Some industries require all time synchronization services to remain inside a private network.
Public NTP Server vs Local NTP Server Comparison
| Feature | Public NTP Server | Local NTP Server |
| Installation | Easy | Professional |
| Cost | Lower | Higher |
| Internet Required | Yes | No |
| Security | Standard | High |
| Time Source Control | Limited | Full Control |
| Large Deployment | Limited | Excellent |
| Hospital Use | Not Recommended | Recommended |
| School Campus | Small Schools | Large Campuses |
| Maintenance | Low | Professional |
Seedlingnet Supports Flexible IP Clock Synchronization Solutions.The major advantage of Seedlingnet network time clock is its flexible architecture. Whether customers need Public NTP synchronization, Local NTP server synchronization, GPS time synchronization, PoE clock deployment or WiFi clock deployment. The best choice depends on your application requirements. If you need simple and cost-effective installations, then choose Public NTP Server. If you need professional and mission-critical systems, then choose Local NTP Server with GPS synchronization. With advanced NTP Clock Synchronization technology, Seedlingnet helps organizations build accurate, reliable, and intelligent IP Clock Synchronization Systems for schools, hospitals, enterprises, and smart buildings.
